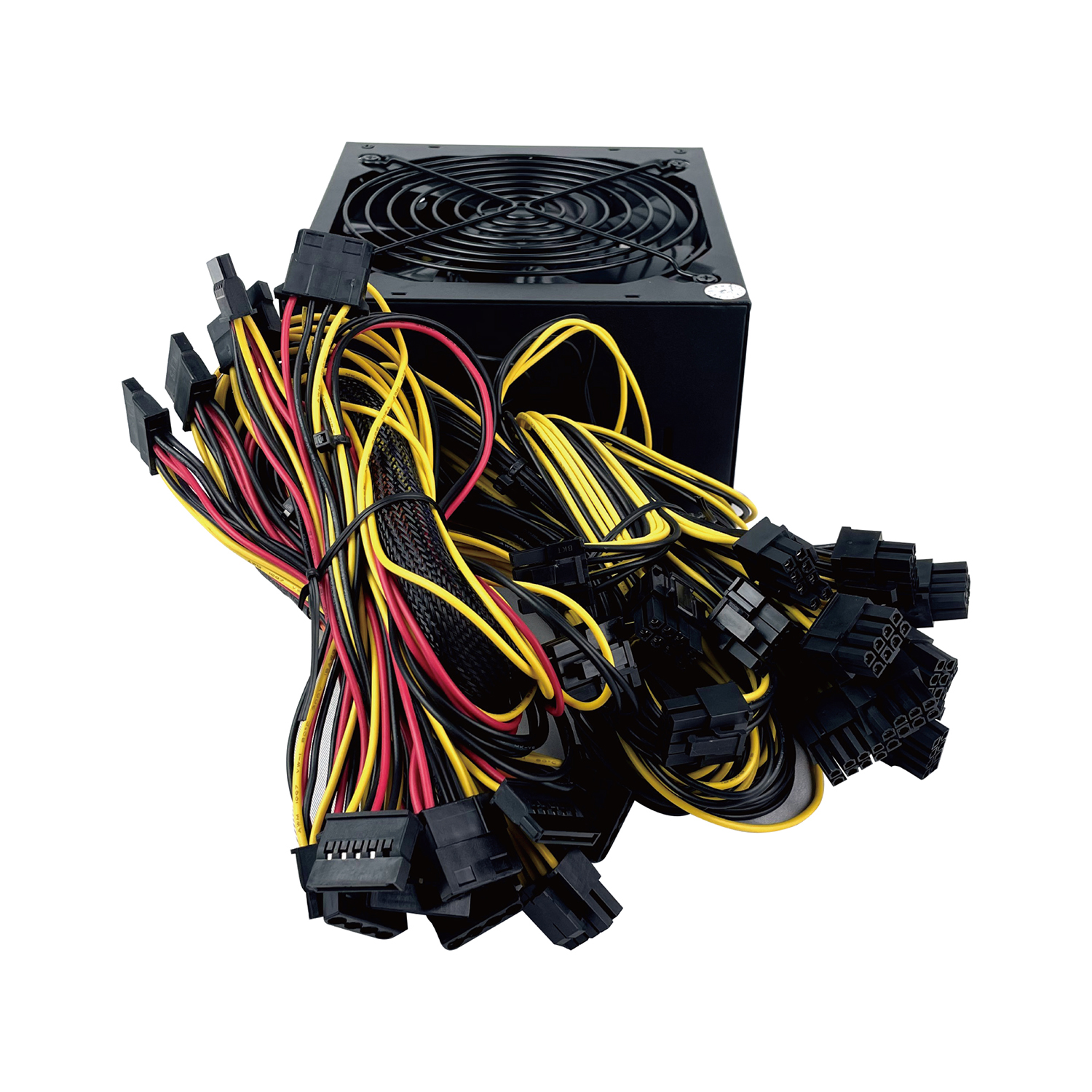

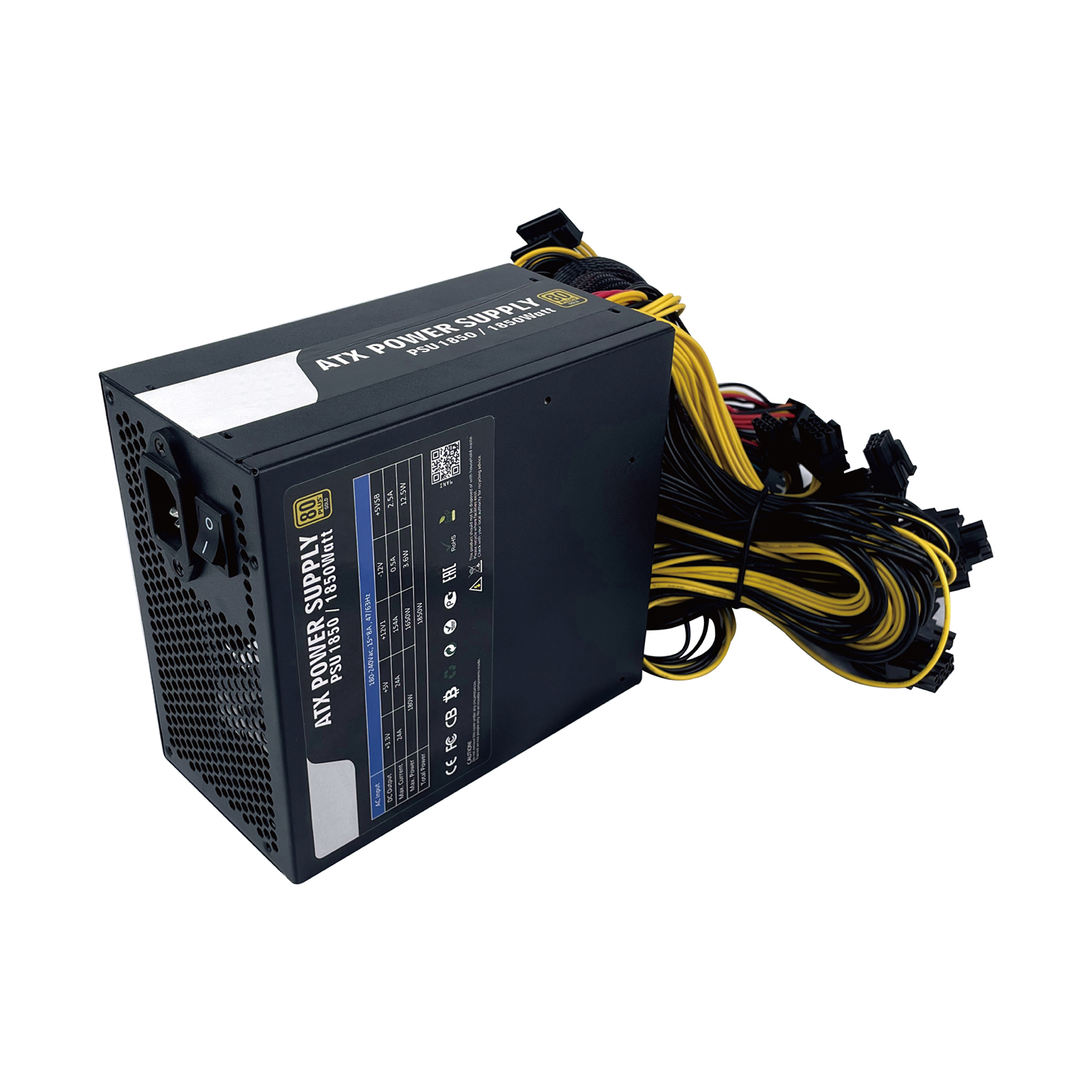

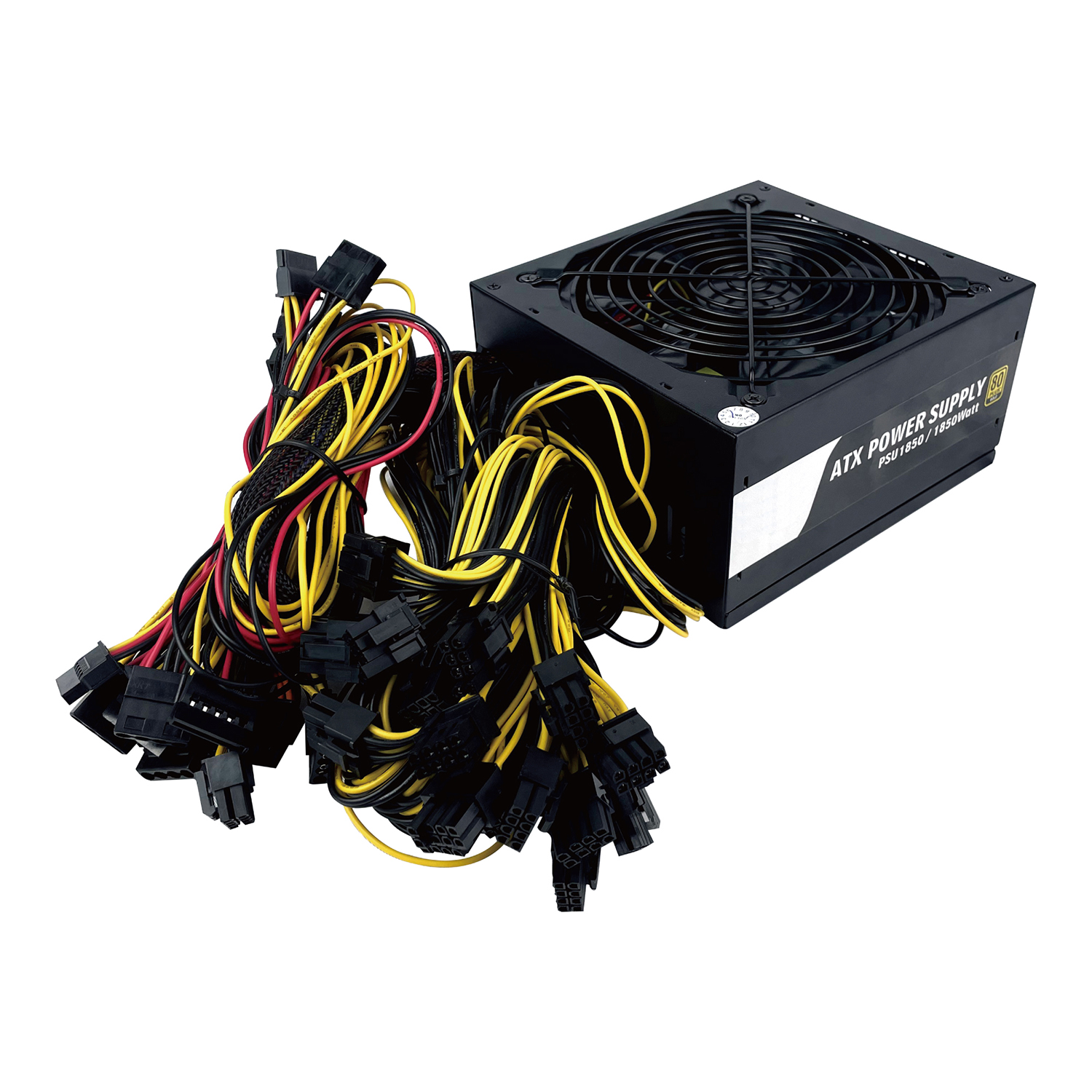

1800W大功率矿机电源模块

在线咨询

产品详情

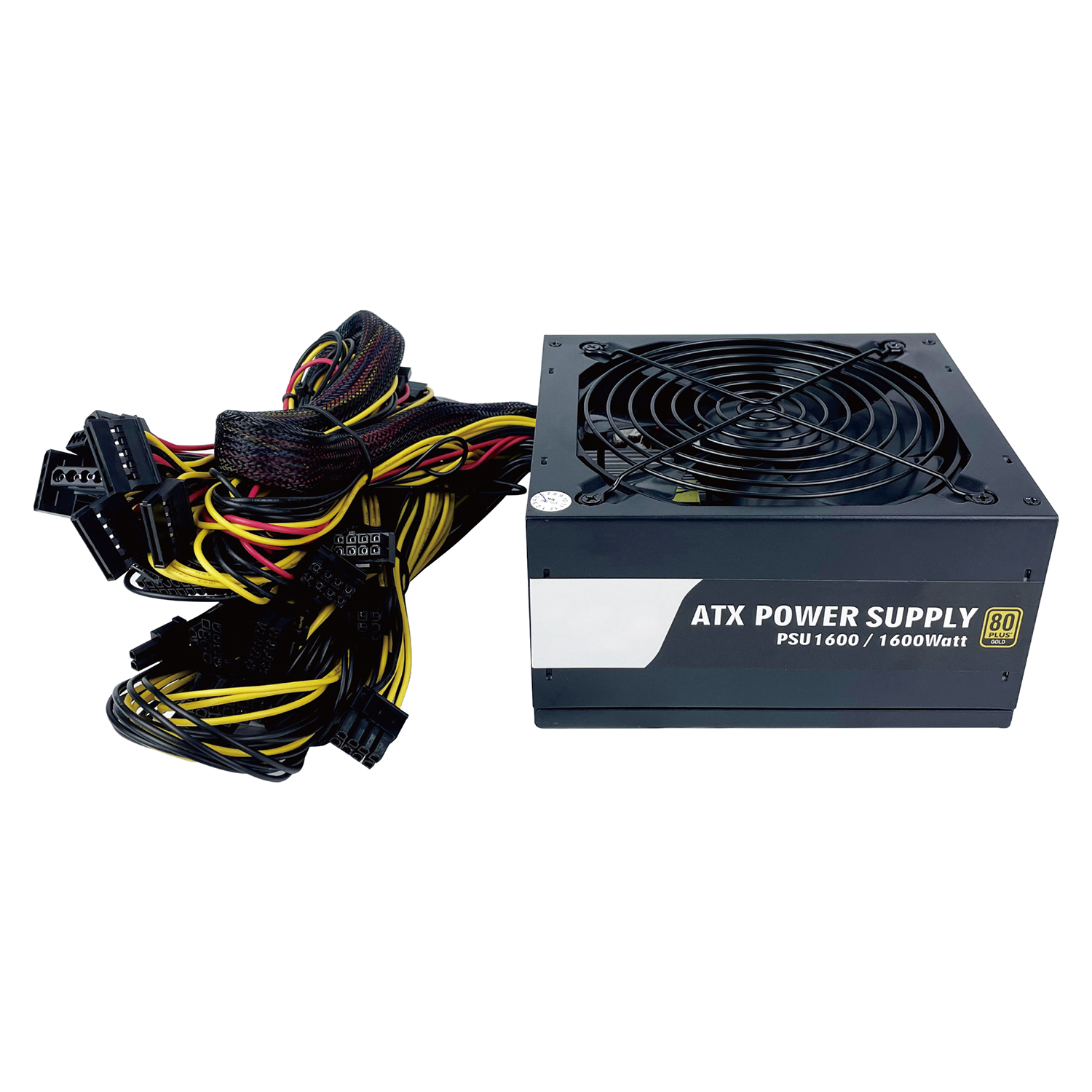

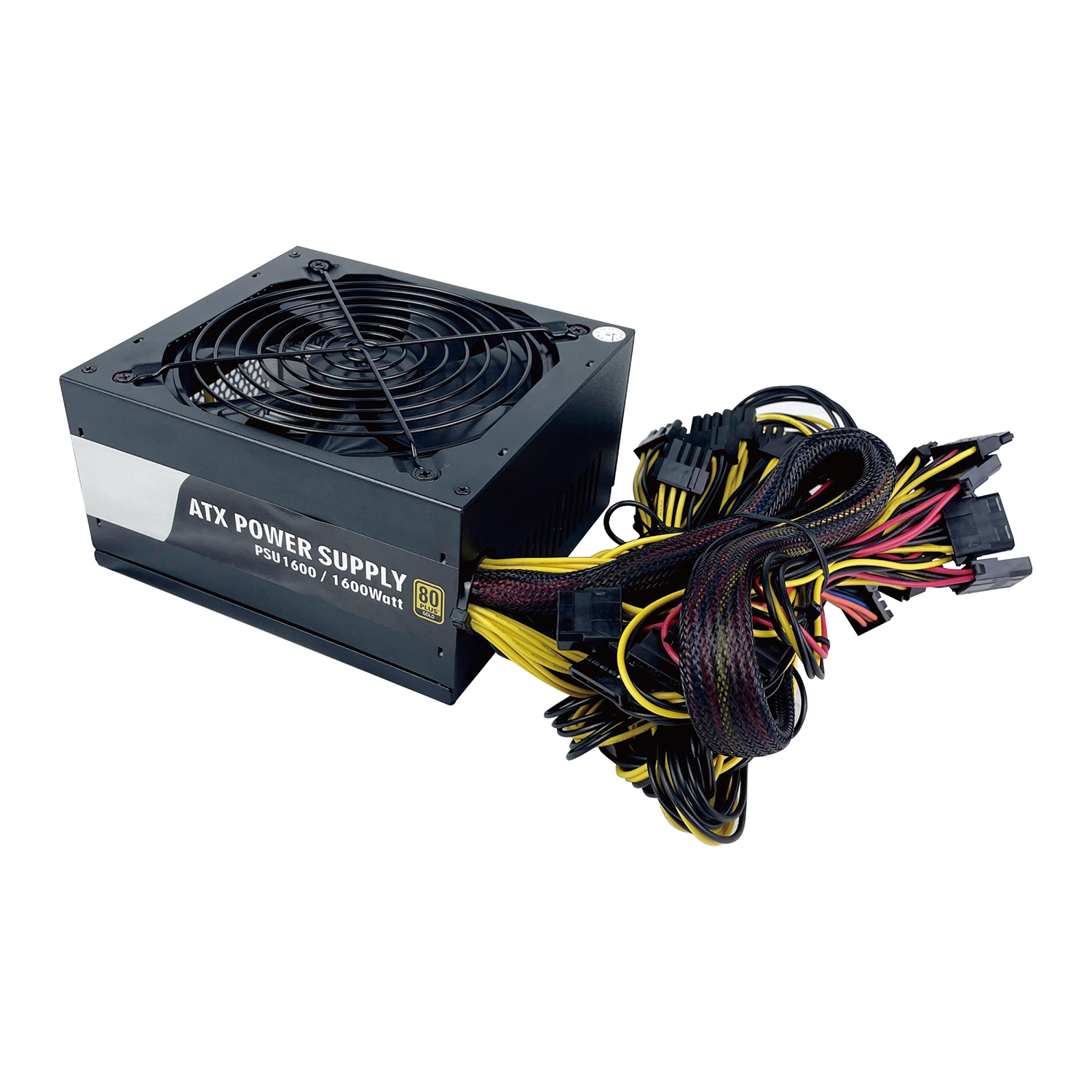

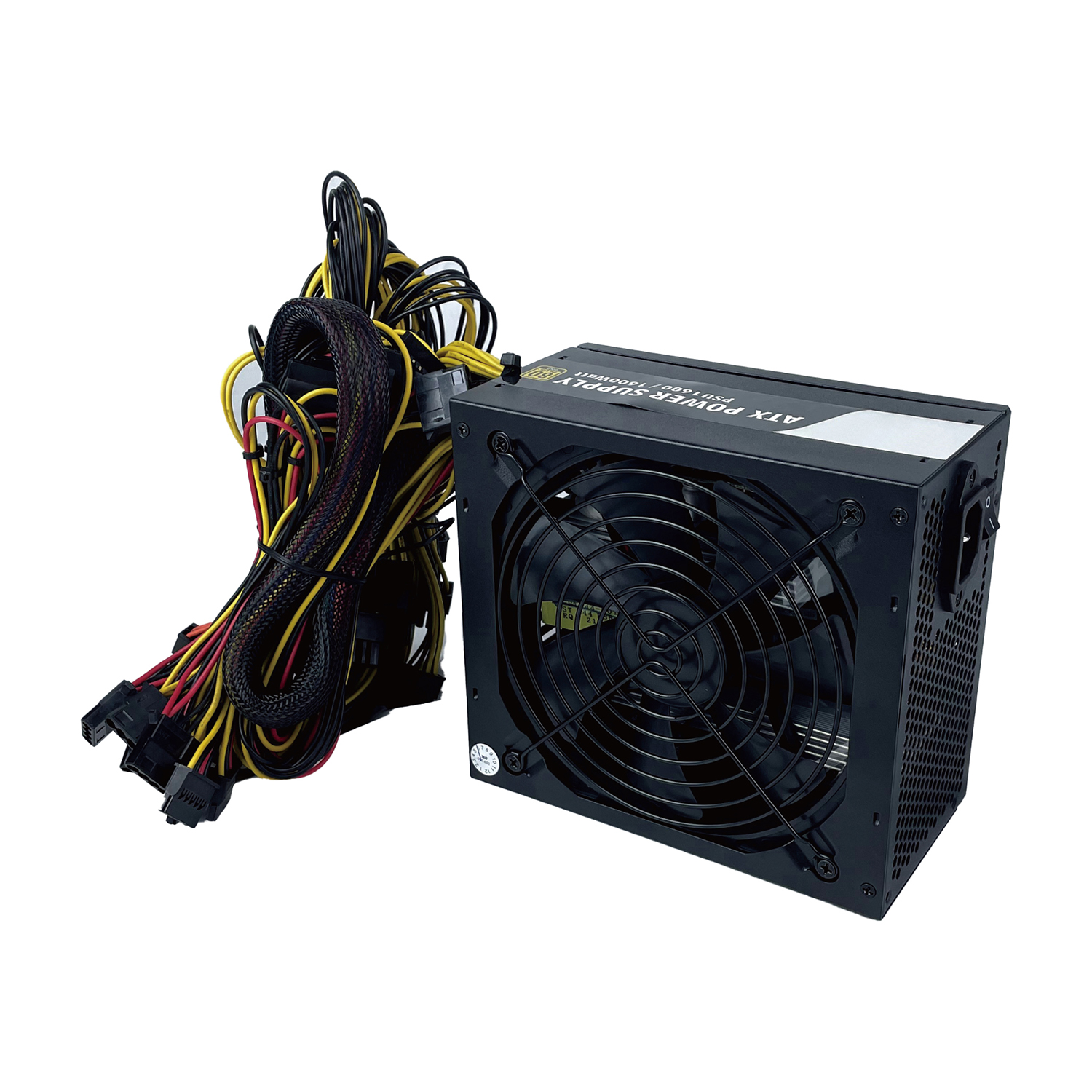

Product Name:	ATX PC 1800W 1600W 80 PLUS Gold GPU Ethereum Mining Power Supply PSU For Eth Mining Rig Machine
Input Voltage:	180-240V
Max Current:	24A
Efficiency:	80 plus gold
Output Power:	1600W/1800W or custom
Type Of Outpute:	PC
Output Frequency:	47-63HZ
Output Voltage:	12V
OEM ODM	welcome

Detailed Specification:

Input:

1.1 Input Voltage Range: 200~264Vac.
1.2 Normal Voltage Range: 200/240Vac.
1.3 Input Frequency Range: 47-66 Hz.
1.4 Max Input AC current: 12A MAX. @ 230Vac.
1.5 Inrush Current: No hazards at AC input 230VACA and 25° start
1.6 Efficiency: Meet 80 plus Bronze requirement at 230Vac input
Output :
The continuous total output power is 1850W max.

The combined power of +5V and +3.3V is 180W max.
Peak currents may last up to 12 seconds with not more than one occurrence per minute.
Add 0.1uF and 10uF capacitors across output terminal during ripple & noise test.
Protections:
When OVP ,OPP or short protection is triggered, the main outputs will be latched off. The main outputs can be reset by cycling the
DC remote on/off or AC power.
+5Vsb output is auto recovery when fault condition removed.
.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
Foldback at 110%~150% over peak load.
