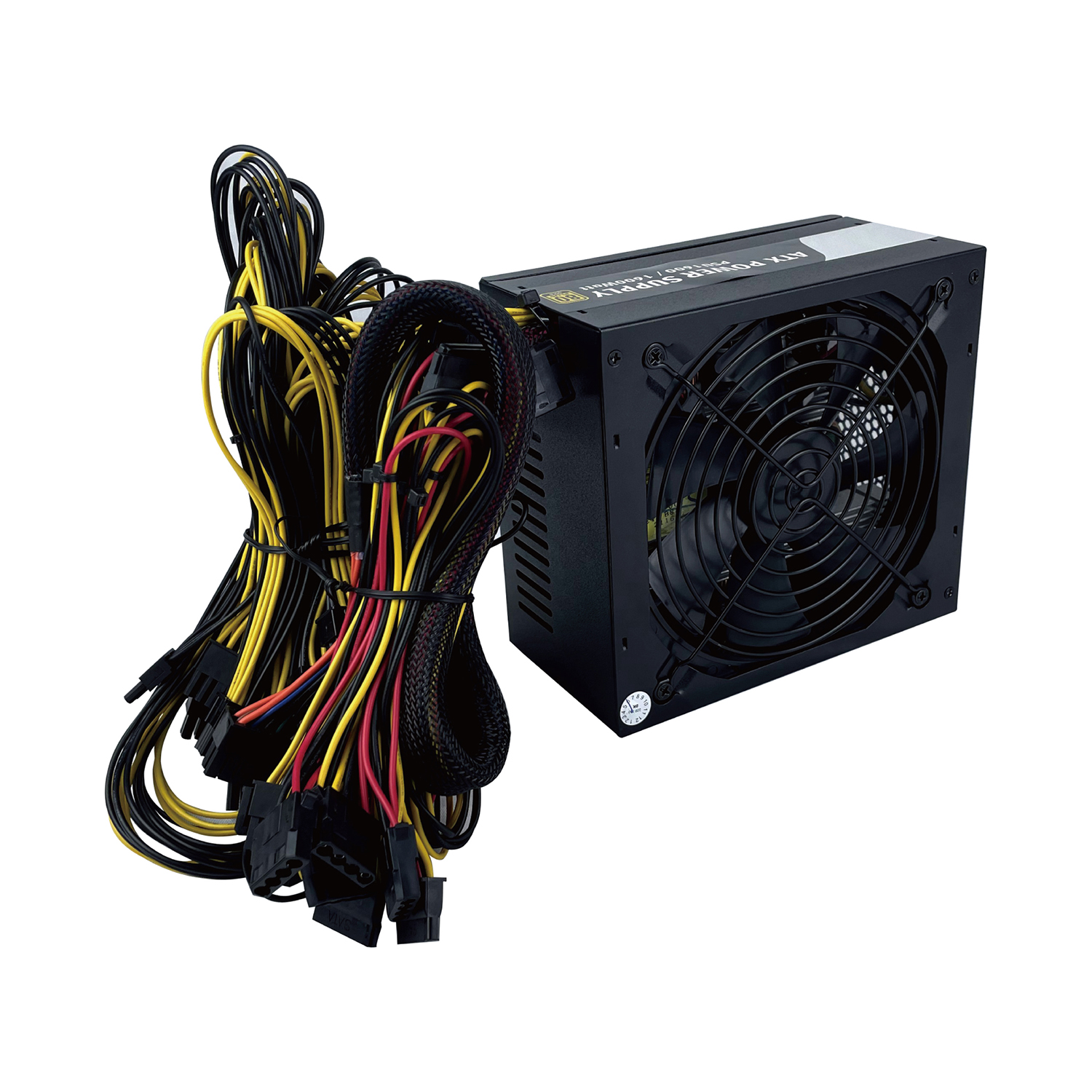

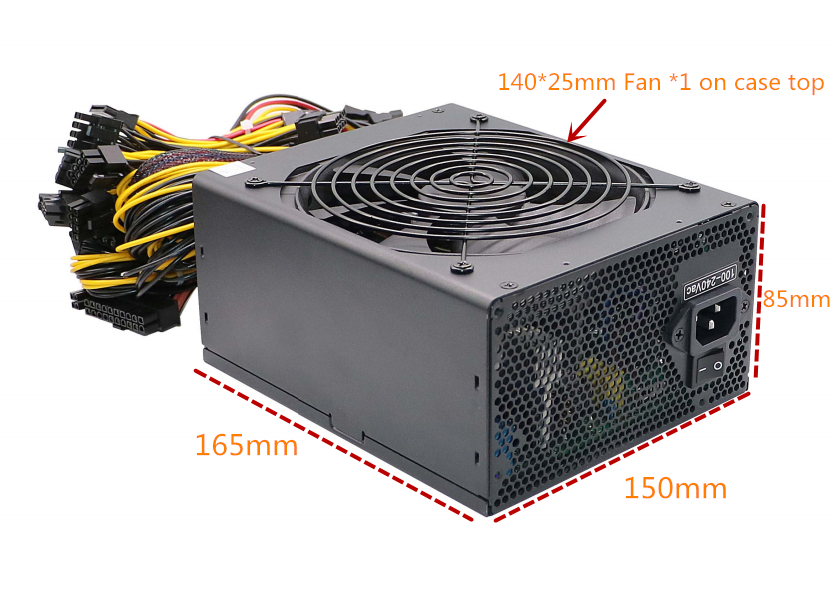

Products Description
Input:
1.1 Input Voltage Range: 200~264Vac.
1.2 Normal Voltage Range: 200/240Vac.
1.3 Input Frequency Range: 47-66 Hz.
1.4 Max Input AC current: 12A MAX. @ 230Vac.
1.5 Inrush Current: No hazards at AC input 230VACA and 25° start
1.6 Efficiency: Meet 80 plus Gold requirement at 230Vac input
1.1 Input Voltage Range: 200~264Vac.
1.2 Normal Voltage Range: 200/240Vac.
1.3 Input Frequency Range: 47-66 Hz.
1.4 Max Input AC current: 12A MAX. @ 230Vac.
1.5 Inrush Current: No hazards at AC input 230VACA and 25° start
1.6 Efficiency: Meet 80 plus Gold requirement at 230Vac input

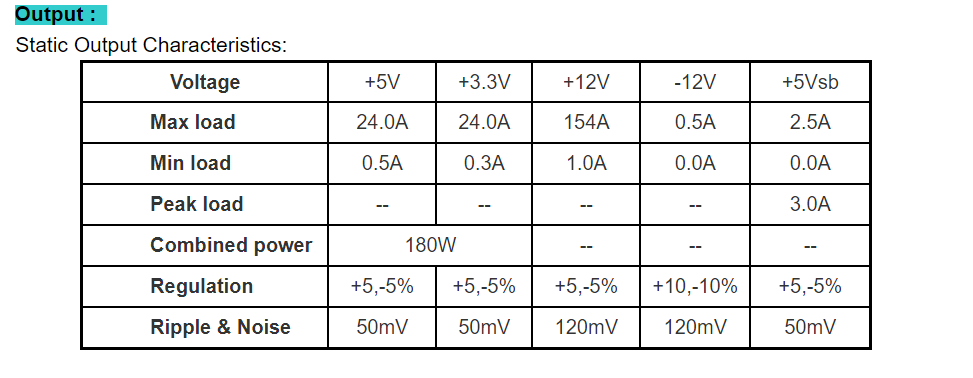

The continuous total output power is2000Wmax.
The combined power of +5V and +3.3V is 180W max.
Peak currents may last up to 12 seconds with not more than one occurrence per minute.
Add 0.1uF and 10uF capacitors across output terminal during ripple & noise test.
Protections:
When OVP ,OPP or short protection is triggered, the main outputs will be latched off. The main outputs can be reset by cycling the
DC remote on/off or AC power.
+5Vsb output is auto recovery when fault condition removed.
.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
Foldback at 110%~150% over peak load
The combined power of +5V and +3.3V is 180W max.
Peak currents may last up to 12 seconds with not more than one occurrence per minute.
Add 0.1uF and 10uF capacitors across output terminal during ripple & noise test.
Protections:
When OVP ,OPP or short protection is triggered, the main outputs will be latched off. The main outputs can be reset by cycling the
DC remote on/off or AC power.
+5Vsb output is auto recovery when fault condition removed.
.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
Foldback at 110%~150% over peak load
