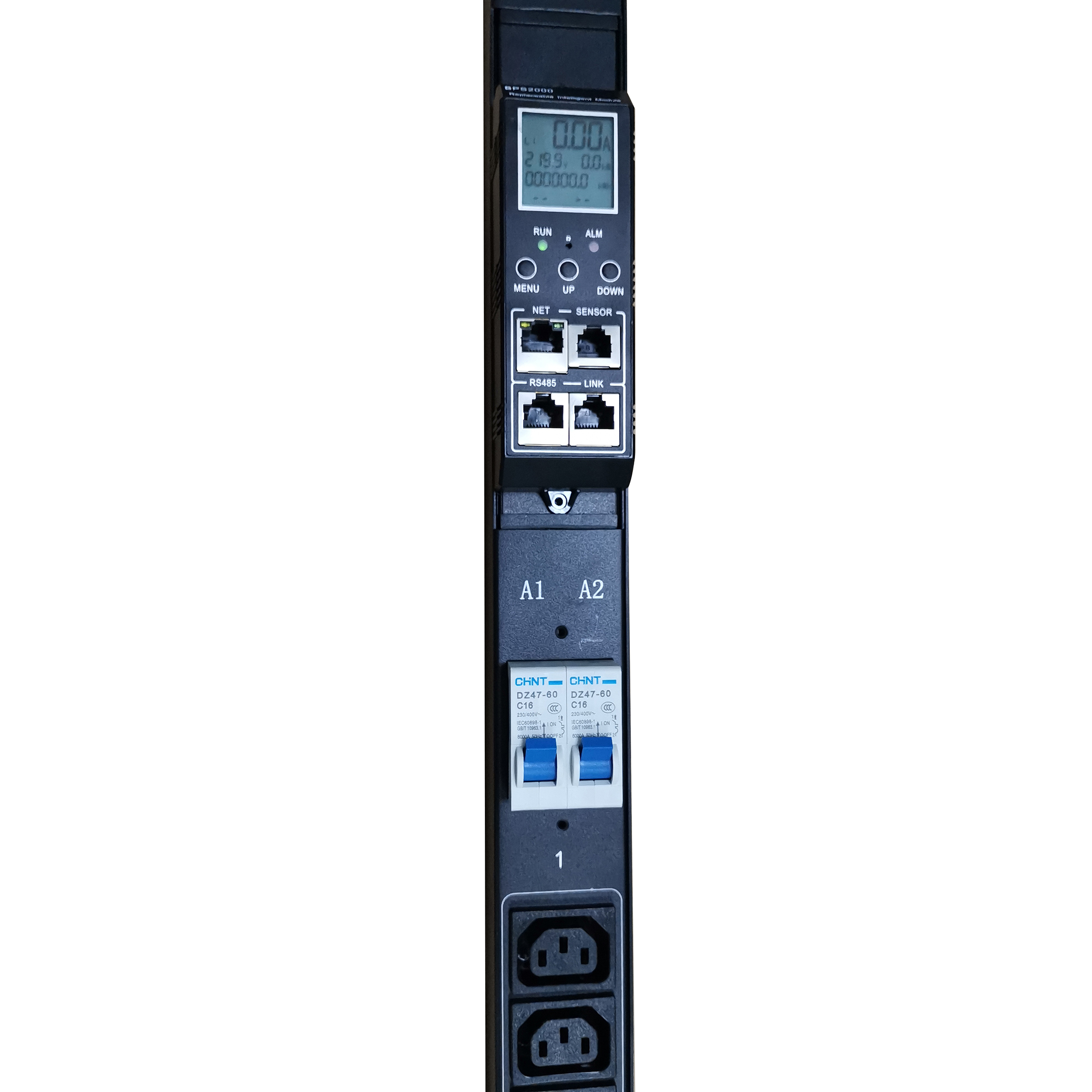

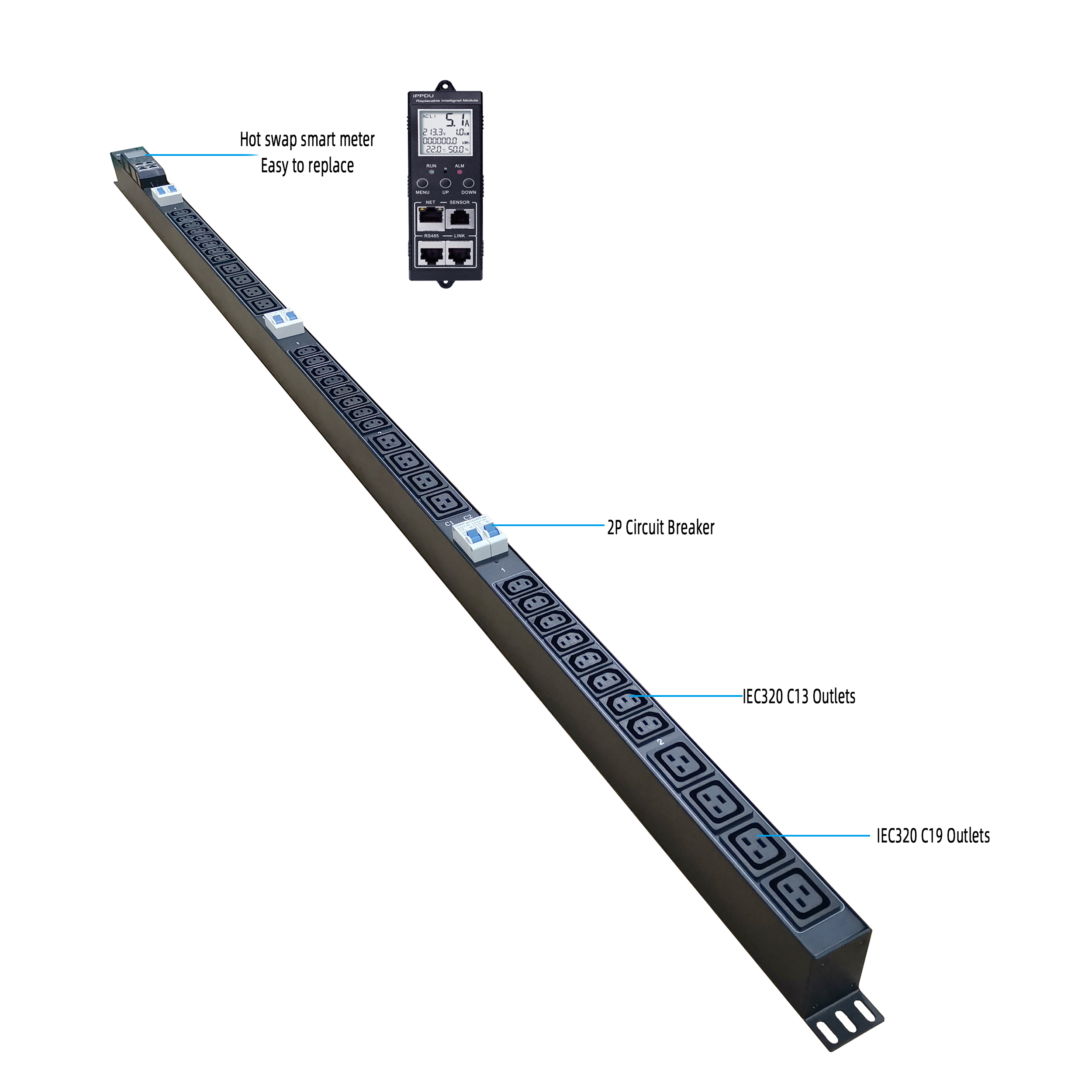

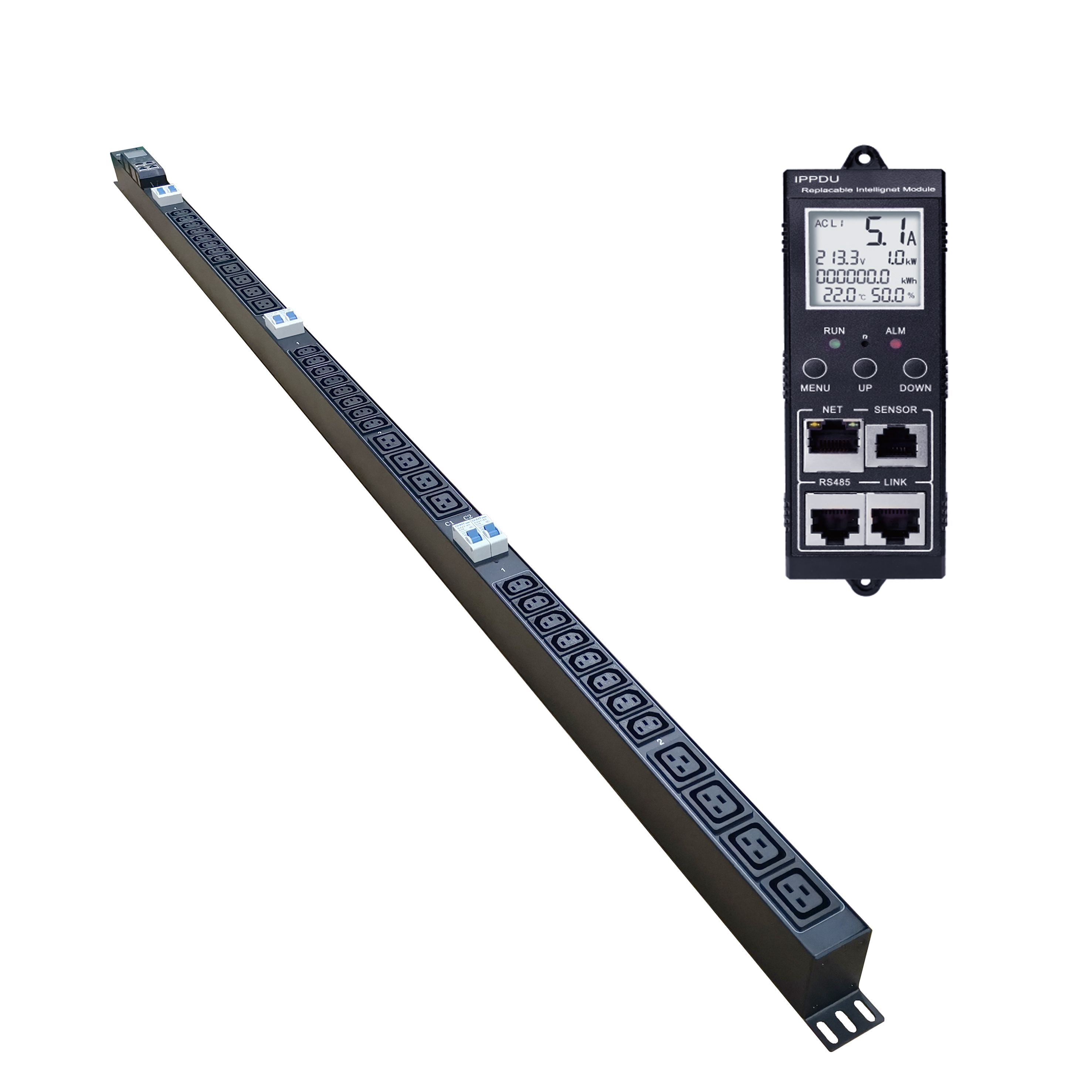

380/415V 32A 21KW 24ways C13 12waysC19 Schuko 3phase PDU soc

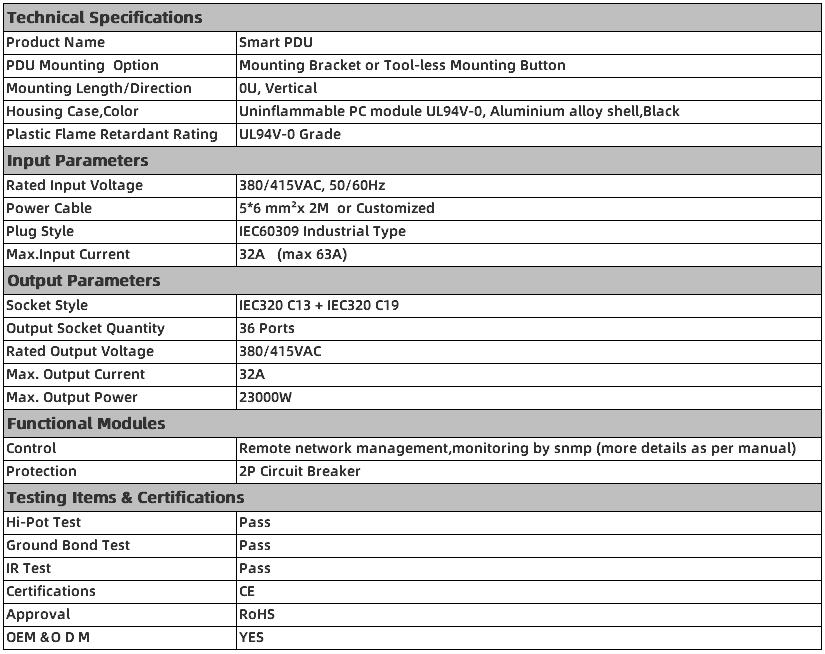

Input characteristics

Rated input voltage

380-415V

Cable specification

5G*6.0MM^2*2M  with 5PIN 32A plug

Output characteristics

Socket standard

IEC

Output quantity

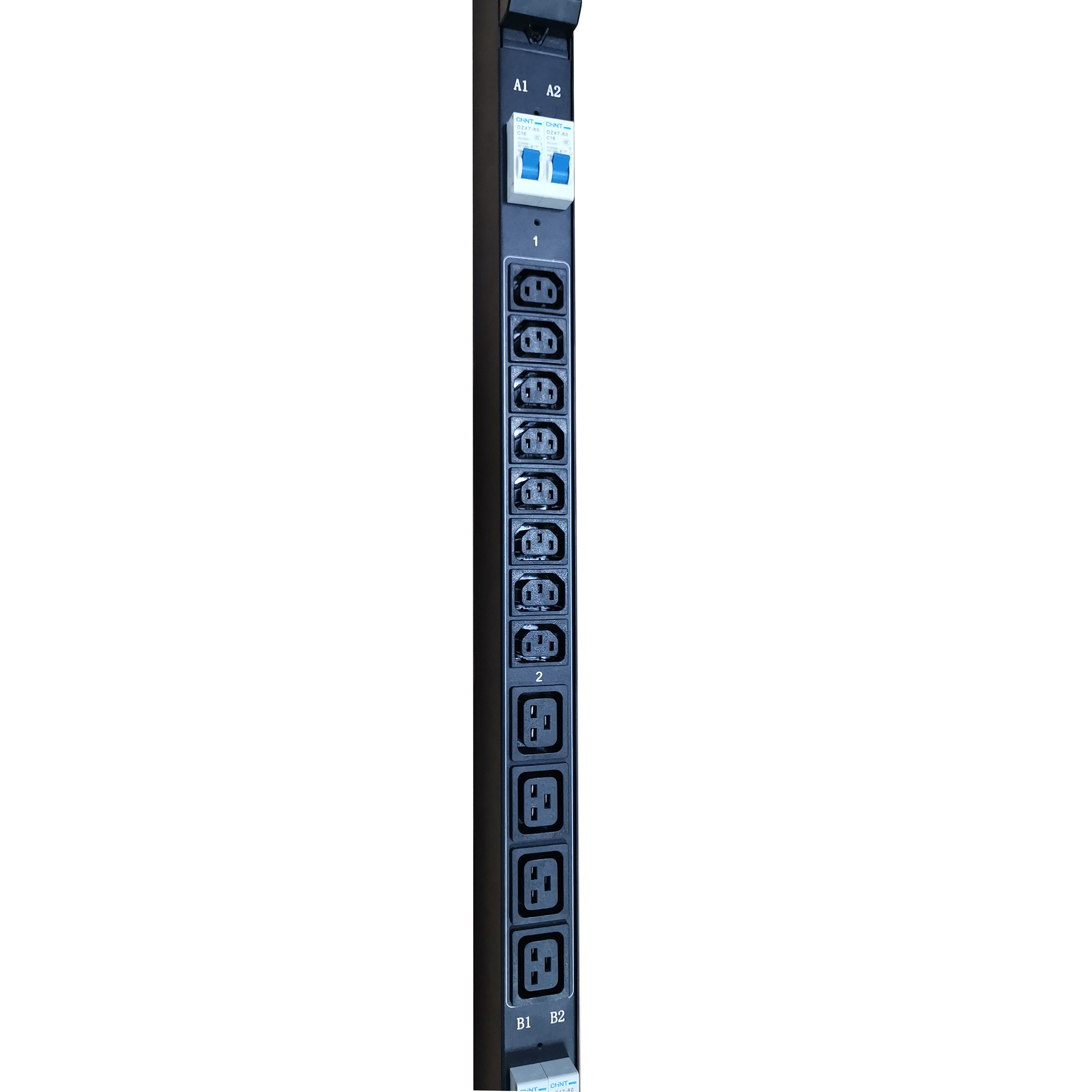

24*C13+12*C19

Rating

32A 380V 21KW

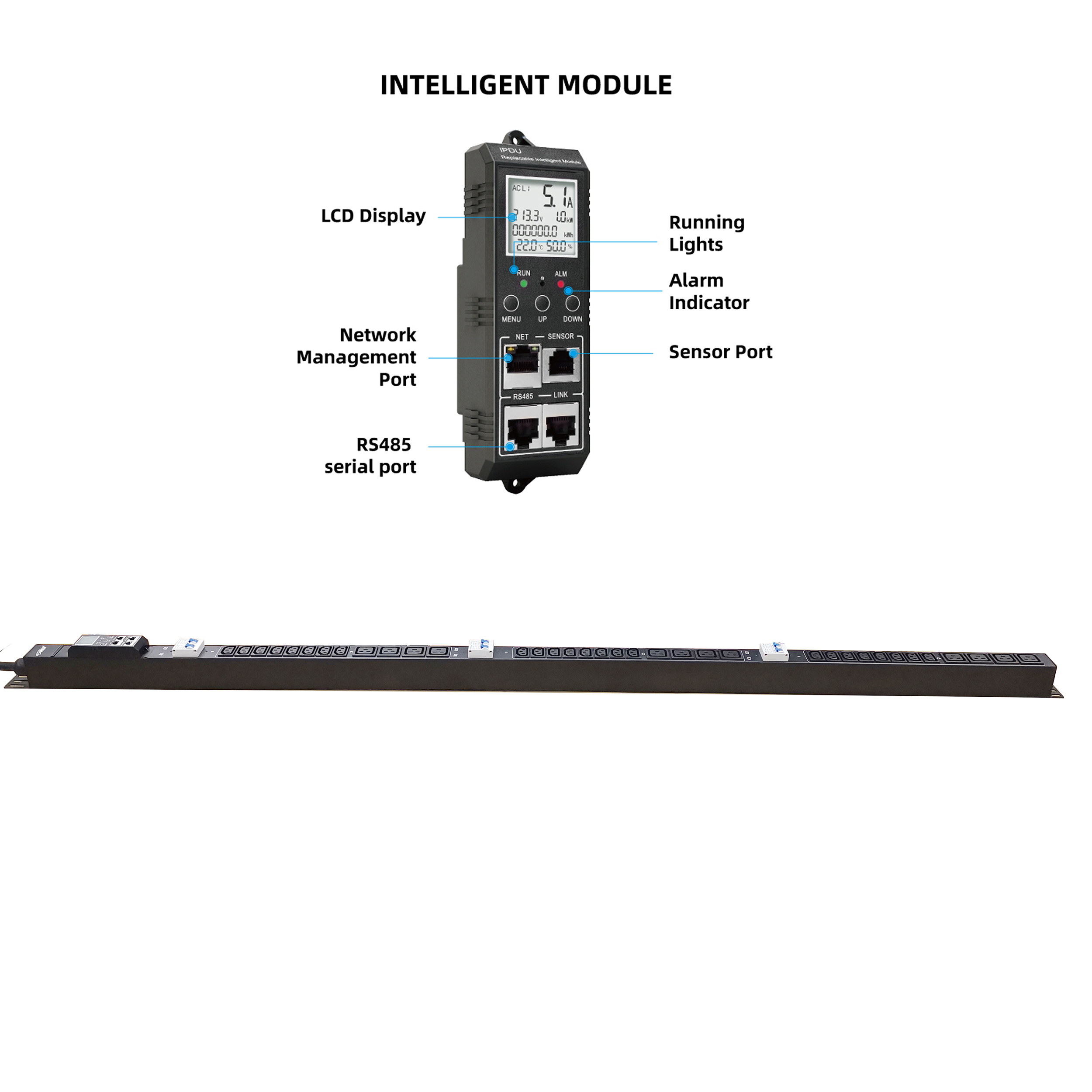

Functions

A, the total load current monitoring;

B, the input voltage monitoring;

C, the load power monitoring;

D, total electricity consumption monitoring;

E, input flow monitoring;

F, input overvoltage monitoring;

G, environmental temperature and humidity monitoring

Size

Product size

LWH=1800*44.5*68MM

Mounting length

1777mm

Test items

hi-pot test

PASS

Grounding

PASS

IR

PASS

Product color& material

Product color:

Silver white or black

Shell material:

aluminum

Plastic flame retardant rating

UL94V-0 grade

Mounting

Mounting method

vertical installation
