380V 415V 480V Three Phase 125A Meter PDU IEC C19 Outlets Hi

Online Consultation

Product Info

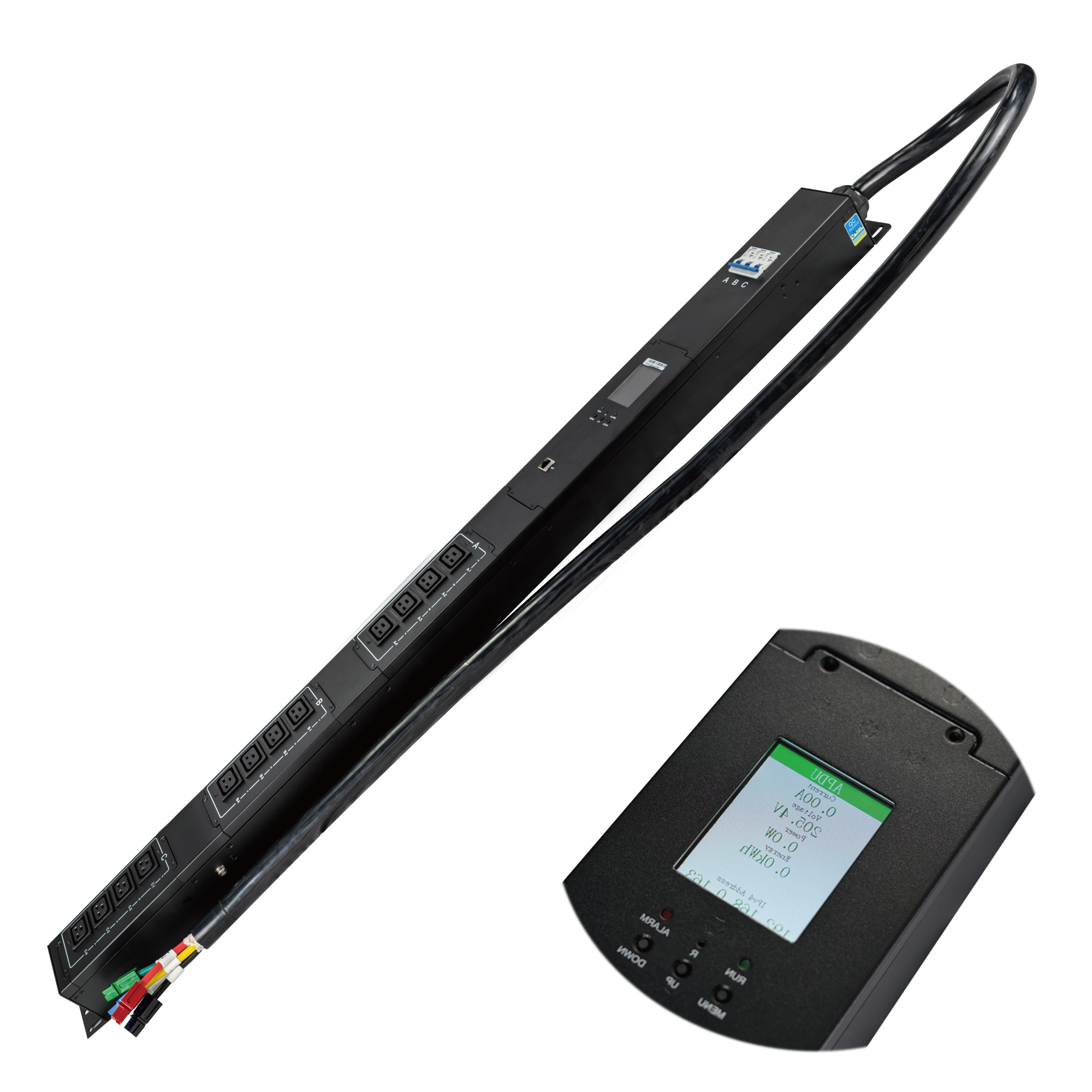

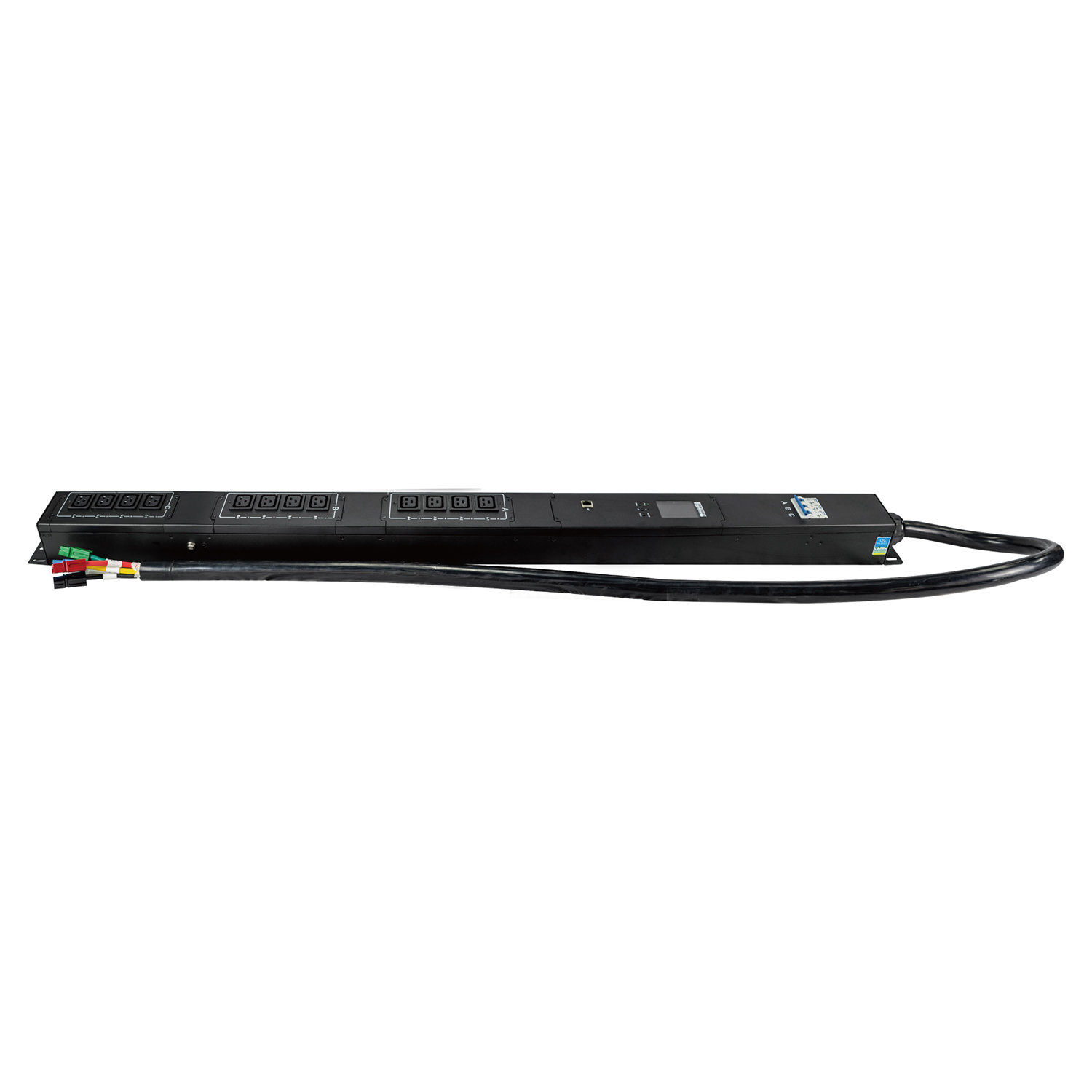

380V 415V 480V Three Phase 125A Meter PDU IEC C19 Outlets High power rack type intelligent power distribution unit

APDU Main Benefits:

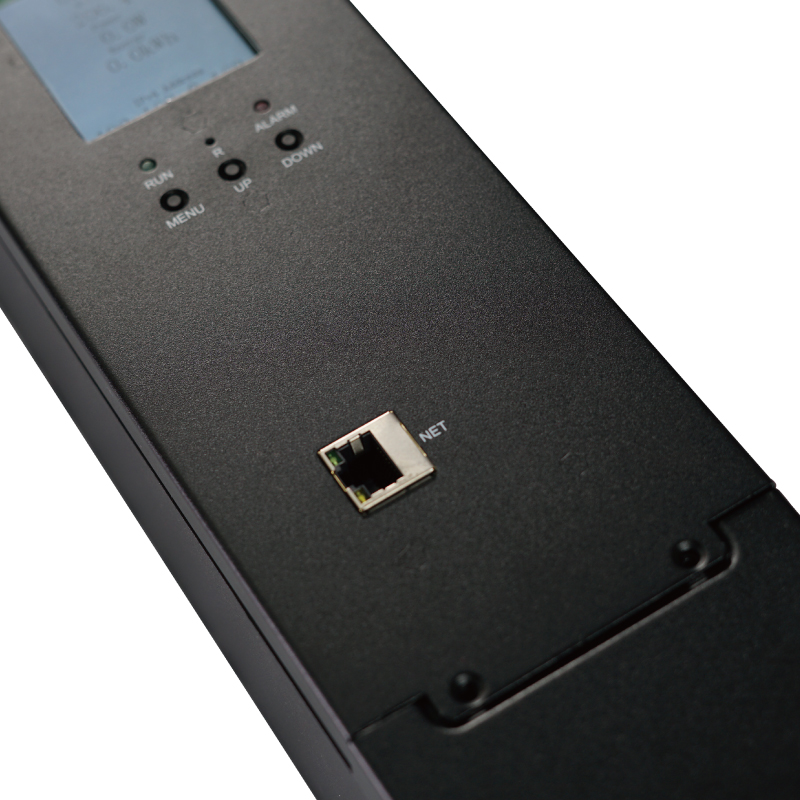

A,Remote network management,

a. Cascade management (SNMP V1.V2.V3)
b. Wifi connecting
c. Data graphical display d. User management
e. The log saved
f. Multiple alarm mode g. Access management,by telnet,ssh or modbus-rtu h. Multiple output options

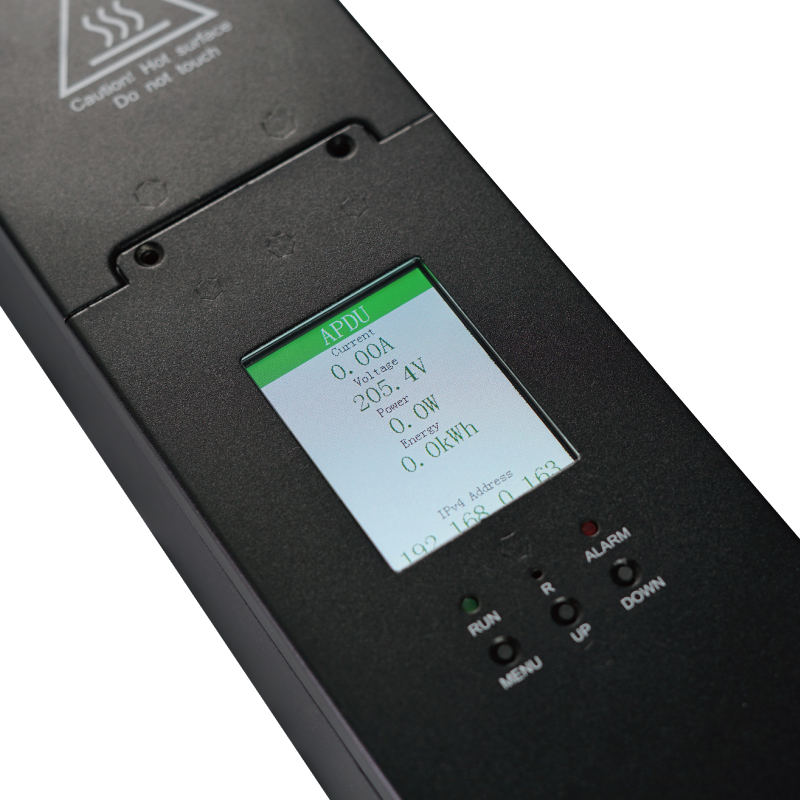

B Monitoring function

a. Monitoring input voltage b. Monitoring total load current
c. Monitoring total power (KW)
d. Monitoring energy consumption (KWH) e. Motoring total power factor f. Monitoring each outlet power
g. Calculate each unit energy consumption

C. Control function
a.On / off control for each outlet
b.On / off time setting for each outlet
c.Boot time delay setting d.Set current limit for each outlet
e.Overload protection (automatic power-off)

**Welcome to contact with us for Smart APDU user manual**

Product Specification
Product name	Factory PDU Three Phase 125A GPU 12way IEC C19
Socket Standard	12pcs C19 (can be changed as client request)
Input voltage	240V Single phase(LNG) to 240V single phase
	380V 3phase(LLLNG) to 220V single phase.
	415v 3phase(LLLNG) to 240V single phase
	480V 3phase(LLLNG) to 277V single phase.
input connector	150A x 5 wires(or juction box, input breaker optional,price difference)
Frequency	50/60Hz
Total current	Max 125A of breaker
Rating output voltage	208~300VAC
Total output power	Max 4432Wx12 or option

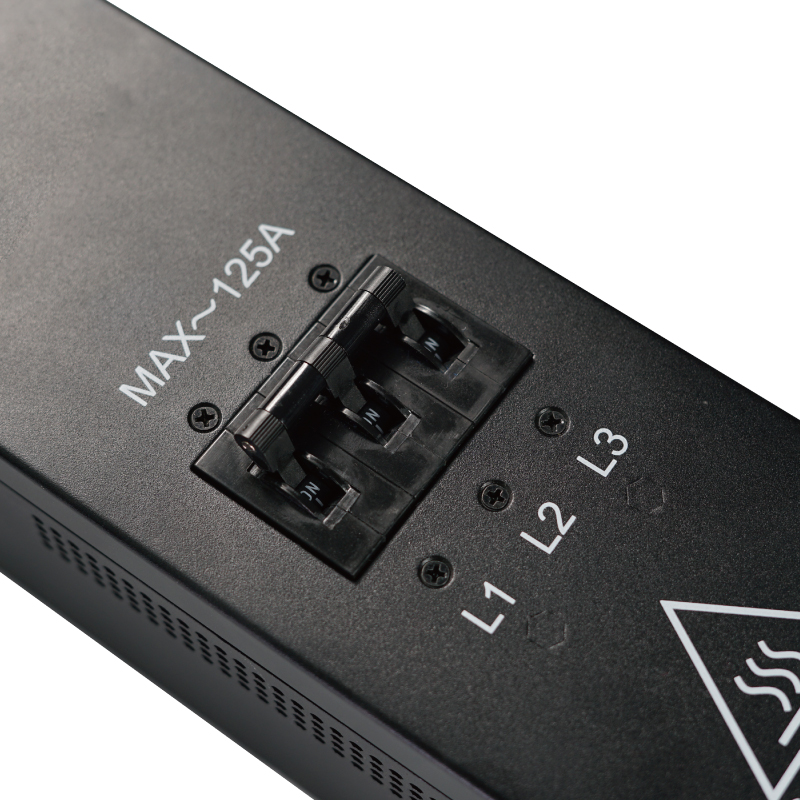

Breaker	125A CHINEHOW 3P breaker with UL or CE (optional)
Wire spec	UL certification,with flame retardant function
Control	integrated remote control
Color	Black or custom
Shell Material	Uninflammable PC module,sheet metal housing
Mounting Method	horizontal or vertical Installation
Support	OEM/ODM

Test Items
Hi-pot test	PASS
Salt Spray Test	PASS
Grounding Test	PASS
Polarity Test	PASS
IR Test	PASS
Socket Life Test	PASS
Aging Test	PASS
