Current Position:HOME > Products > Mill outlet smart PDU >

90 kW 125A 3phase 480V to 277V Power Distribution Unit high

Product Info
APDU Main Benefits:
A,Remote network management,
a. Cascade management (SNMP V1.V2.V3)
b. Wifi connecting
c. Data graphical display d. User management
e. The log saved
f. Multiple alarm mode g. Access management,by telnet,ssh or modbus-rtu h. Multiple output options

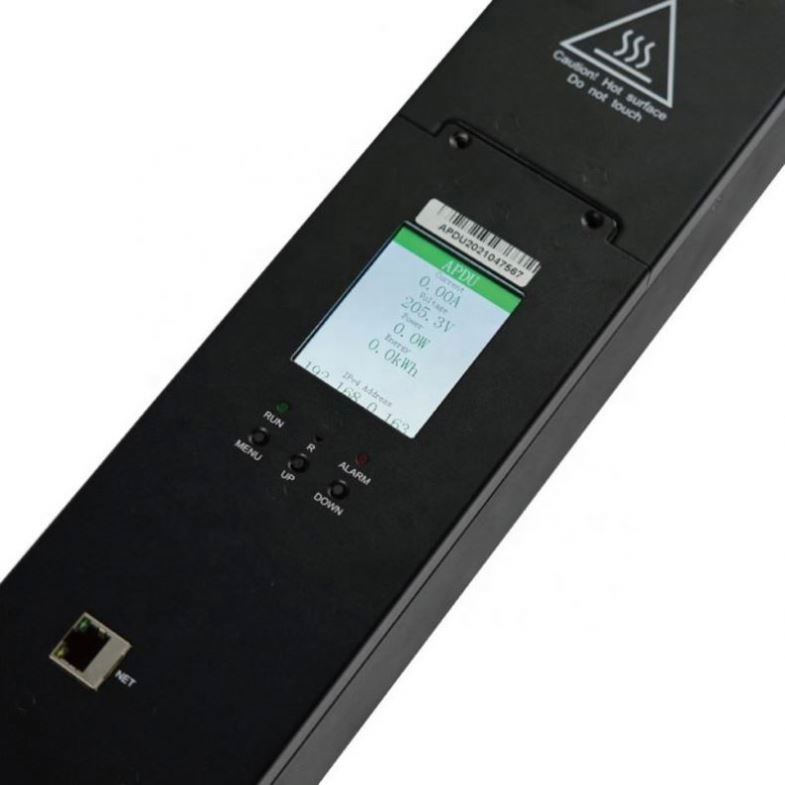

B Monitoring function
a. Monitoring input voltage b. Monitoring total load current
c. Monitoring total power (KW)
d. Monitoring energy consumption (KWH) e. Motoring total power factor f. Monitoring each outlet power
g. Calculate each unit energy consumption

C. Control function
a.On / off control for each outlet
b.On / off time setting for each outlet
c.Boot time delay setting d.Set current limit for each outlet
e.Overload protection (automatic power-off)
Product Specification
product name
90 kW 125A 3phase 480V to 277V Power Distribution Unit AntMiner s9 Miner Smart Mining PDU
Socket Standard
24pcs C19 (can be changed as client request)
Input voltage
240V Single phase(LNG) to 240V single phase
380V 3phase(LLLNG) to 220V single phase.
415v 3phase(LLLNG) to 240V single phase
480V 3phase(LLLNG) to 277V single phase.
input connector
 150A x 5 wires(or juction box, input breaker optional,price difference)
Frequency
50/60Hz
Total current
Max 125A of breaker
Rating output voltage
208~300VAC
Total output power
Max 4432Wx24
Breaker
125A CHINEHOW 3P breaker with UL or CE (optional)
Wire spec
UL certification,with flame retardant function
Control
integrated remote control
Color
Black or custom
Dimensions
L x W x H=2142*85*94mm
Shell Material
Uninflammable PC module,sheet metal housing
Mounting Method
horizontal or vertical Installation
Support
OEM/ODM

Test Items
Hi-pot test
PASS
Salt Spray Test
PASS
Grounding Test
PASS
Polarity Test
PASS
IR Test
PASS
Socket Life Test
PASS
Aging Test
PASS

90 kW 125A 3phase 480V to 277V Power Distribution Unit high  Power intelligent remote control PDU socket
